24mm f/1.4 L Prime with an Iris Ring for Video
Overview

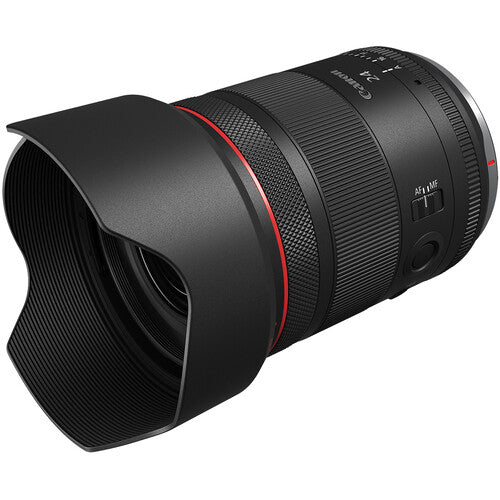

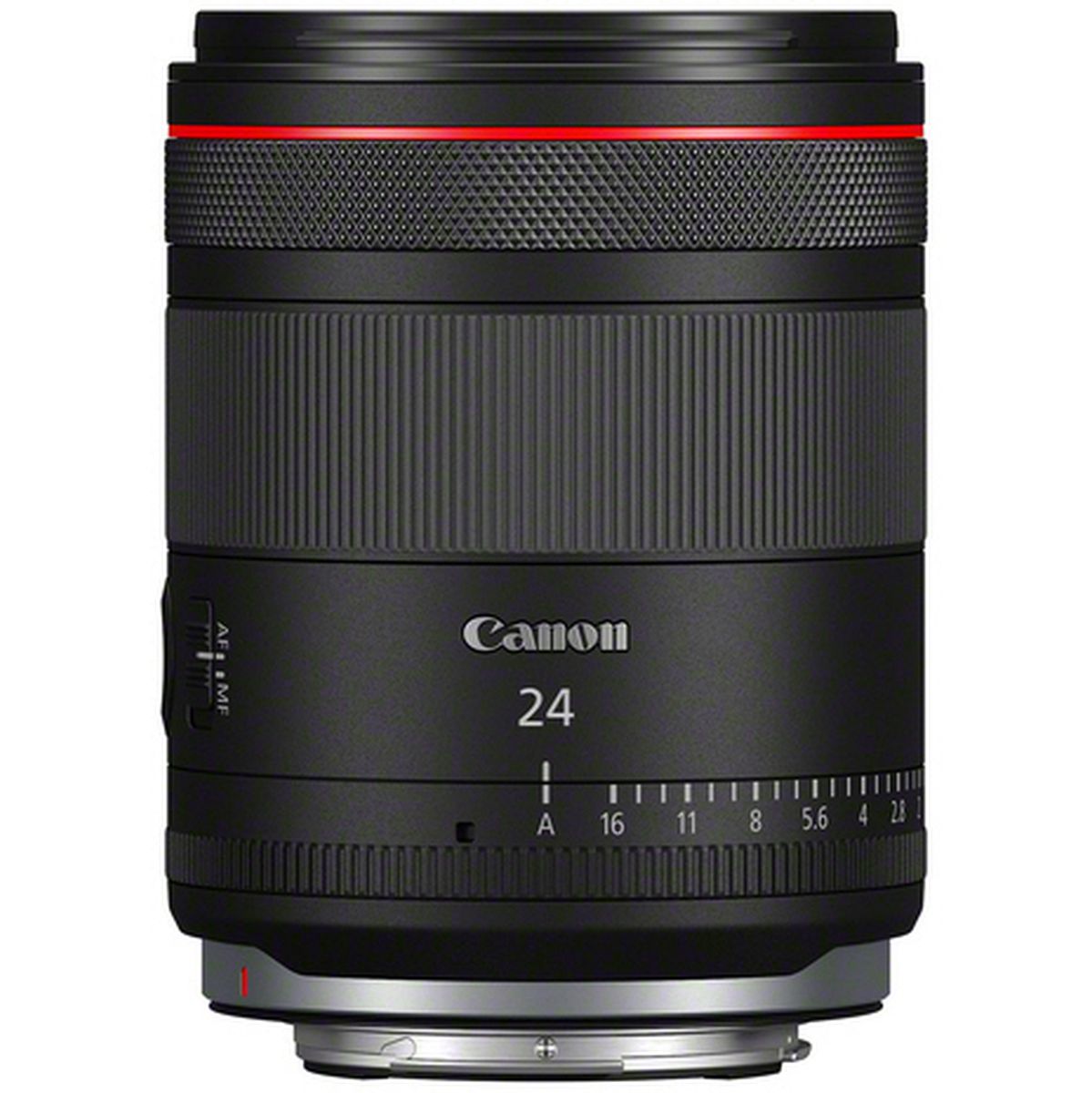

The Canon RF 24mm f/1.4 L VCM is a wide-angle L prime built for people who shoot stills and video with the same lens. It focuses with two motors — VCM for smooth pulls and Nano USM for speed — and adds a dedicated iris ring alongside the usual control ring, so aperture can be set by hand without stepping.
Key features
The optics
- 15 elements in 11 groups, with two UD elements and one GMo aspherical element to control aberration across a fast wide angle.
- 11-blade circular aperture: rounded highlights wide open and clean starbursts stopped down.
- 74° horizontal, 53° vertical, 84° diagonal on full frame.
Focusing
- VCM and Nano USM motors: a voice coil motor for smooth, quiet focus pulls, and Nano USM for fast acquisition on stills.
Controls
- Dedicated iris ring: aperture by hand, without clicks, which is what filmmaking needs.
- Control ring and custom button: assignable to ISO, exposure compensation or shutter speed.
Specifications
- Mount: Canon RF
- Image size: full frame
- Focal length: 24mm
- Maximum aperture: f/1.4
- Angle of view: 74° horizontal, 53° vertical, 84° diagonal
- Lens construction: 15 elements in 11 groups
- Special optics: 2x UD, 1x GMo aspherical
- Diaphragm blades: 11, circular
- Autofocus: VCM and Nano USM
- Rings: iris ring (video), control ring, custom button
What it is good for
- Reportage and street: 24mm is the classic wide reportage length, and f/1.4 keeps it usable after dark.
- Interiors and environmental portraits: wide enough for the room, fast enough to separate the subject from it.
- Filmmaking: iris ring and VCM focus, matched to the rest of the L VCM family.
